Denon AVR-X1700H

Details & Specifications

Multichannel Surround

Sound Enhancements

Network

HEOS Multiroom and StreamingYes
Lossy Formats: MP3 / WMA / AACYes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAVYes / Yes / Yes
DSD Audio Streamingup to DSD5.6
FLAC HD 192/24Yes
WAV 192/24Yes
ALAC 192/24Yes
Gapless playbackYes (FLAC, WAV, ALAC, DSD)
AirPlay 2Yes
Roon TestedYes
Internet RadioTuneIn
Spotify Connect* / Tidal* / Deezer* / others *Yes / Yes / Yes / Yes
Amazon Prime Music* / Pandora*Yes / Yes
Compatible with Remote APP for Smart PhonesAndroid / iOS
Compatible with Remote APP for TabletsAndroid / iOS / Amazon Kindle
Ethernet PortsYes
Wi-FiYes
BluetoothYes
Bluetooth Headphone transmissionYes

HDMI

Multi-room CI

Others

Voice Control – Works with Amazon AlexaYes
Voice Control – Google Assist / Apple SiriYes / Yes
Auto Speaker Setup by MicrophoneAudyssey MultEQ XT
FL Display1 line
Graphic User Interface – GUIHybrid GUI
GUI Languages3
Setup AssistantYes
Quick Select Plus / Quick SelectYes / No
Firmware Update by: Network / USBYes / Yes
Variable Cross OverYes
Optimized Bass RedirectionYes
ECO ModeYes
Auto Power OffYes
Sleep TimerYes

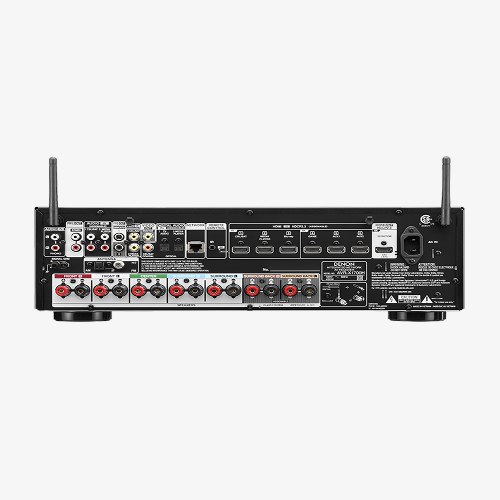

Inputs/Outputs

Composite In / Out2 / 1
Component In / OutNo / No
HDMI In / Out6 / 1
Multi-room Video Out: Video / HDMINo / No
Analogue In/out2 / No
Phono (MM) InYes
Digital In: Optical / Coaxial2 / 1
Multi-room Out: Analog / DigitalYes / No
Multichannel Pre-outYes (0.2)
Subwoofer Out2
Speaker Terminal: Gold Plated Screw / Regular ScrewNo / Yes
Number of Speaker Terminals7
Speaker A / Bassignable
Bi-amp Driveassignable
Multi-Room Speaker Terminalassignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USBNo / No / No / No / Yes
USB Audio / Made for iPod / Made for iPhoneYes / AirPlay / AirPlay
Tuner: FM / AMYes / Yes

Specifications

General

Available colors: Black / Premium SilverYes / No
System Remote ControlRC-1244
Pre-programmed / Learnable / LCD DisplayNo / No / No
Power Consumption in W430
Power Consumption No-Sound (ECO On / Off) in W29 W / 39 W
Dimensions (W x D x H)434 x 339 x 151 mm
Standby Consumption in W0.1
CEC Standby Consumption in W0.5
Network Control On Consumption in W2.0
Maximum Dimensions w/ Antenna (W x D x H)434 x 339 x 151 mm
Weight in kg8.6
Carton Maximum Dimensions (W x D x H) in mm523 x 435 x 232
Carton Weight (inc. product) in kg10.6
Maximum Dimensions
Antenna: Horizontal: (W x D x H) in Inches
Antenna: Vertical: (W x D x H) in Inches
W/O Antenna: (W x D x H) in Inches17.1× 13.3 × 6
( 17.1 x 13.3 x 8.5)
Weight in LBS18.96
Carton Maximum Dimensions (W x H x D) in Inches20.6 x 17.1 x 9.1
Carton Weight (inc. product) in LBS23.37

Description

Designed for 4K or 8K setups, the AVR-X1700H delivers the ultimate 3D audio home theater/gaming experiences and supports the latest HDMI specifications.

7.2 channels
80 watts per channel
8K Ultra HD
3D Audio
Powered by HEOS®
6 HDMI inputs
